Getting started with Rtractor

Source: vignettes/getting-started.Rmd
getting-started.Rmd

Overview

Rtractor is the complexity/statistical-physics layer of the Circadia Lab R ecosystem: a shared home for the nonlinear dynamics and complex-systems measures (entropy, fractal dimension, multifractal spectra, recurrence quantification) that would otherwise get reimplemented piecemeal inside signal-specific packages like mrpheus, zeitR, and dynR.

Like the rest of the ecosystem, Rtractor is signal-agnostic: every function accepts a plain numeric vector regardless of where it came from – EEG, actigraphy, BOLD, HRV, or anything else – rather than assuming a specific acquisition modality or staging scheme.

Where a solid reference implementation exists, Rtractor wraps it (via Rcpp) rather than re-deriving the algorithm from scratch, to preserve numerical parity with the original methods literature. Where no license permits a direct wrap, functions are clean-room reimplementations from the published algorithm, validated against the reference implementation on synthetic test data. See inst/COPYRIGHTS for the full provenance of every function.

This article walks through everything currently implemented, organised by family. See “What isn’t here yet” at the end for what’s still in progress.

Installation

# install.packages("remotes")
remotes::install_github("circadia-bio/Rtractor")

Example data

A couple of synthetic series to work with throughout: white noise (an uncorrelated signal, the classic complexity-measures benchmark) and a random walk (its cumulative sum, the other classic benchmark).

set.seed(1)
white_noise <- rnorm(4000)
random_walk <- cumsum(white_noise)

Fractal & multifractal analysis

Detrended Fluctuation Analysis

dfa() estimates the scaling exponent alpha of a time series (Peng et al. 1994). By default it treats x as an increment series and integrates it internally – the standard DFA convention – so white noise gives the textbook benchmark of alpha ~ 0.5:

dfa(white_noise)$alpha
#> [1] 0.4773237

Feeding a random walk through the same default pipeline amounts to double integration – the other classic benchmark, alpha ~ 1.5:

dfa(random_walk)$alpha
#> [1] 1.473855

Higuchi Fractal Dimension

higuchi_fd() estimates fractal dimension from curve length at increasing sub-sampling intervals (Higuchi 1988). White noise is space-filling (HFD ~ 2); a smooth periodic signal is line-like (HFD ~ 1):

higuchi_fd(white_noise, k_max = 10)$hfd
#> [1] 2.000681

smooth_signal <- sin(seq(0, 40 * pi, length.out = 4000))
higuchi_fd(smooth_signal, k_max = 10)$hfd
#> [1] 1.002216

Multifractal Detrending Moving Average (MFDMA)

mfdma() extends DFA to a spectrum of scaling exponents across multifractal orders q (Gu & Zhou 2010), returning the singularity spectrum f(alpha):

mf <- mfdma(white_noise, n_min = 10, n_max = 400, n_scales = 20)
plot(mf$alpha, mf$f, type = "b", xlab = "alpha", ylab = "f(alpha)")

White noise is close to monofractal, so the spectrum collapses to a narrow range around alpha ~ 0.5 with f(alpha) peaking near 1.

Chhabra-Jensen multifractal spectrum

chhabra_jensen() estimates the same kind of spectrum via direct box-counting (Chhabra & Jensen 1989) rather than detrended fluctuations. It needs a strictly positive series with a dyadic (power-of-two-friendly) length:

positive_series <- abs(rnorm(1024)) + 0.01
cj <- chhabra_jensen(positive_series, scales = 1:6)
plot(cj$alpha, cj$falpha, type = "b", xlab = "alpha", ylab = "f(alpha)")

Each q value’s alpha/falpha/Dq estimate comes with an R-squared (r_squared_alpha, r_squared_falpha, r_squared_Dq) – worth checking before trusting any individual point, especially near the edges of the q range.

Nonlinear time-domain features

Three fast, cheap-to-compute descriptors centralised from mrpheus’s AASM staging feature pipeline (itself a validated port of the antropy/YASA Python feature set):

petrosian_fd(white_noise)
#> [1] 1.02932

hjorth_parameters(white_noise)
#> $mobility
#> [1] 1.407727
#>
#> $complexity
#> [1] 1.226695

num_zerocross(white_noise)
#> [1] 1958

petrosian_fd() is a fast proxy for irregularity based on sign changes in the first difference. hjorth_parameters() returns mobility (a proxy for mean frequency) and complexity (a proxy for bandwidth) from variance ratios of successive differences – note this uses Bessel-corrected variance, matching R’s var() convention, which differs slightly from antropy’s population-variance convention for short series (see ?hjorth_parameters). num_zerocross() simply counts sign changes.

Entropy

perm_entropy() estimates complexity from the distribution of ordinal patterns in the series (Bandt & Pompe 2002), normalised to [0, 1] by default:

perm_entropy(white_noise)
#> [1] 0.9996287
perm_entropy(smooth_signal)
#> [1] 0.4219911

White noise has near-maximal permutation entropy (every ordinal pattern is close to equally likely); the smooth periodic signal has much lower entropy (a small number of patterns dominate).

Recurrence quantification analysis (RQA)

recurrence_microstate_entropy() implements a parameter-free approach to recurrence analysis (Corso et al. 2018): rather than picking a vicinity threshold epsilon by hand, it searches for the threshold that maximises the Shannon entropy of the recurrence microstate distribution.

windowed_signal <- (sin(seq(0, 20 * pi, length.out = 300)) + 1) / 2
recurrence_microstate_entropy(windowed_signal, seed = 1)
#> $microstate_probs
#>   [1] 5.048889e-01 1.544444e-02 0.000000e+00 1.611111e-03 1.688889e-02
#>   [6] 5.555556e-05 2.055556e-03 4.555556e-03 0.000000e+00 2.000000e-03
#>  [11] 0.000000e+00 9.388889e-03 0.000000e+00 0.000000e+00 0.000000e+00
#>  [16] 4.000000e-03 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [21] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [26] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [31] 0.000000e+00 2.666667e-03 0.000000e+00 0.000000e+00 0.000000e+00
#>  [36] 0.000000e+00 2.500000e-03 0.000000e+00 1.050000e-02 4.388889e-03
#>  [41] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [46] 0.000000e+00 0.000000e+00 2.222222e-04 0.000000e+00 0.000000e+00
#>  [51] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [56] 2.666667e-03 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [61] 0.000000e+00 0.000000e+00 0.000000e+00 3.444444e-03 1.627778e-02
#>  [66] 2.222222e-04 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [71] 0.000000e+00 0.000000e+00 2.388889e-03 4.166667e-03 0.000000e+00
#>  [76] 4.722222e-03 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [81] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [86] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#>  [91] 0.000000e+00 2.166667e-03 0.000000e+00 0.000000e+00 0.000000e+00
#>  [96] 1.177778e-02 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [101] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [106] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [111] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [116] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [121] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [126] 0.000000e+00 0.000000e+00 4.055556e-03 0.000000e+00 0.000000e+00
#> [131] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [136] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [141] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [146] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [151] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [156] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [161] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [166] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [171] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [176] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [181] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [186] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [191] 0.000000e+00 0.000000e+00 2.555556e-03 0.000000e+00 0.000000e+00
#> [196] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [201] 8.833333e-03 3.833333e-03 0.000000e+00 1.666667e-04 0.000000e+00
#> [206] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [211] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [216] 0.000000e+00 0.000000e+00 2.888889e-03 0.000000e+00 3.944444e-03
#> [221] 0.000000e+00 0.000000e+00 0.000000e+00 4.611111e-03 0.000000e+00
#> [226] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [231] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [236] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [241] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [246] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [251] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 1.000000e-03
#> [256] 1.694444e-02 1.661111e-02 0.000000e+00 0.000000e+00 0.000000e+00
#> [261] 1.111111e-04 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [266] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [271] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [276] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [281] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [286] 0.000000e+00 0.000000e+00 0.000000e+00 2.944444e-03 0.000000e+00
#> [291] 0.000000e+00 0.000000e+00 4.944444e-03 0.000000e+00 4.388889e-03
#> [296] 1.666667e-04 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [301] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [306] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [311] 2.833333e-03 1.088889e-02 0.000000e+00 0.000000e+00 0.000000e+00
#> [316] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 4.166667e-03
#> [321] 5.555556e-05 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [326] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [331] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [336] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [341] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [346] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [351] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [356] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [361] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [366] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [371] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [376] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [381] 0.000000e+00 0.000000e+00 0.000000e+00 1.666667e-04 2.500000e-03
#> [386] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [391] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [396] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [401] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [406] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [411] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [416] 0.000000e+00 9.111111e-03 0.000000e+00 0.000000e+00 0.000000e+00
#> [421] 4.722222e-03 0.000000e+00 1.111111e-04 0.000000e+00 0.000000e+00
#> [426] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [431] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [436] 0.000000e+00 2.833333e-03 0.000000e+00 4.666667e-03 5.111111e-03
#> [441] 0.000000e+00 0.000000e+00 0.000000e+00 1.222222e-03 0.000000e+00
#> [446] 0.000000e+00 0.000000e+00 1.916667e-02 4.555556e-03 0.000000e+00
#> [451] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [456] 0.000000e+00 4.166667e-03 3.888889e-04 0.000000e+00 0.000000e+00
#> [461] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [466] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [471] 0.000000e+00 0.000000e+00 2.500000e-03 1.150000e-02 0.000000e+00
#> [476] 4.888889e-03 0.000000e+00 0.000000e+00 0.000000e+00 2.222222e-04
#> [481] 4.388889e-03 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [486] 0.000000e+00 0.000000e+00 0.000000e+00 2.222222e-04 0.000000e+00
#> [491] 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00 0.000000e+00
#> [496] 0.000000e+00 2.944444e-03 0.000000e+00 0.000000e+00 0.000000e+00
#> [501] 1.183333e-02 0.000000e+00 4.888889e-03 1.666667e-04 4.277778e-03
#> [506] 4.888889e-03 0.000000e+00 1.800000e-02 4.388889e-03 1.666667e-04
#> [511] 1.783333e-02 1.232222e-01
#>
#> $entropy_max
#> [1] 2.392682
#>
#> $eps_max
#> [1] 0.19624

Colour palette & theme

Rtractor ships its own colour palette and ggplot2 theme, visually distinct from circadia’s (softer, more pastel) so figures from each package are recognisable at a glance:

rtractor_palette()
#>      coral      cream       sage steel_blue        ink
#>  "#FFB6A6"  "#FFEBD3"  "#9BCEC1"  "#67A2C5"  "#23475C"
rtractor_palette("core")
#>      coral      cream       sage steel_blue
#>  "#FFB6A6"  "#FFEBD3"  "#9BCEC1"  "#67A2C5"

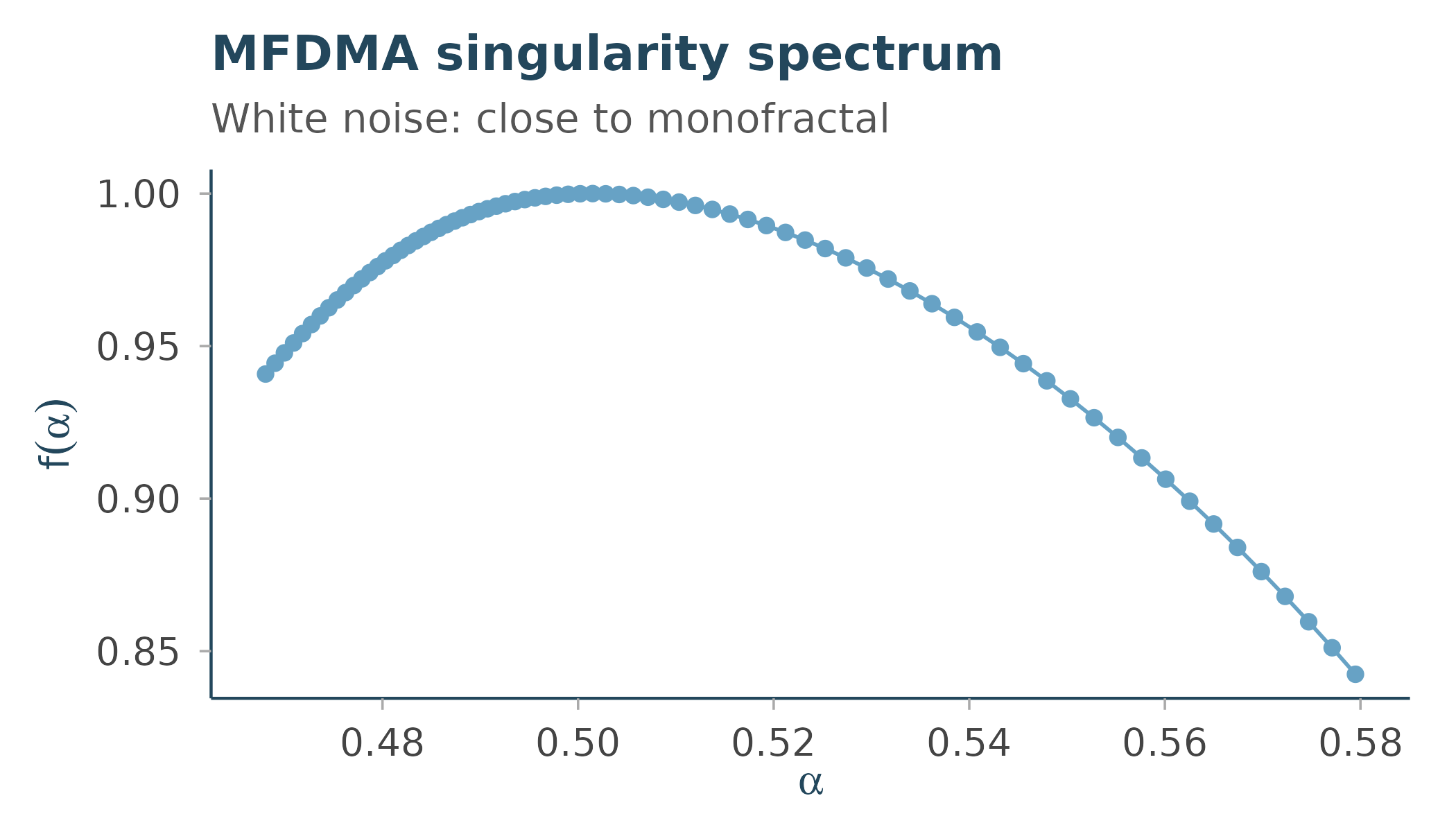

library(ggplot2)

mf_df <- data.frame(alpha = mf$alpha, f = mf$f)

ggplot(mf_df, aes(alpha, f)) +
  geom_point(colour = rtractor_palette("core")[["steel_blue"]], size = 2) +
  geom_line(colour = rtractor_palette("core")[["steel_blue"]]) +
  labs(
    title = "MFDMA singularity spectrum",
    subtitle = "White noise: close to monofractal",
    x = expression(alpha), y = expression(f(alpha))
  ) +
  theme_rtractor()

What isn’t here yet

Several planned families aren’t implemented yet:

  • Lyapunov exponents (R/lyapunov.R) – Rosenstein and Wolf methods for the largest Lyapunov exponent.
  • Multiscale metrics (R/multiscale.R) – multiscale entropy and refined composite multiscale entropy, built on the entropy family applied at each coarse-grained scale.
  • General RQA measures (R/rqa.R) – the recurrence matrix itself and its derived quantifiers (determinism, laminarity, recurrence rate, trapping time). recurrence_microstate_entropy() is a threshold-selection tool, not a replacement for these.
  • Phase-space embedding (R/embed.R) – time-delay embedding, and delay/dimension estimation, needed by the Lyapunov and RQA families above.

See NEWS.md for progress, or the package’s GitHub repository for the current status of reference code for each.
